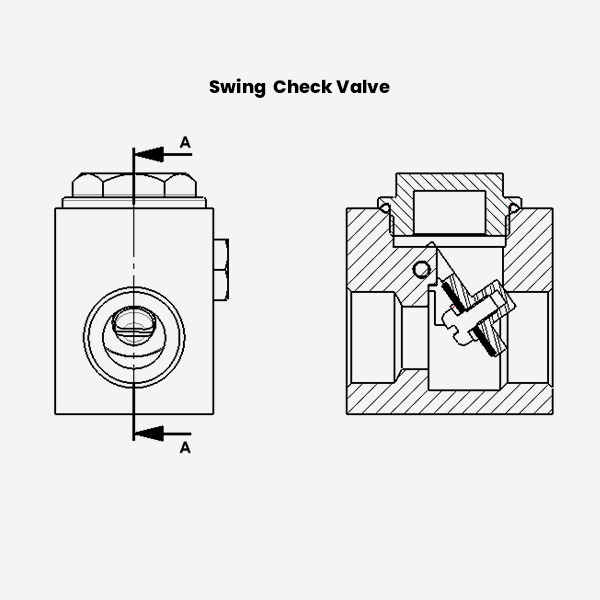

SWING CHECK VALVE
Category: Check valves
| Features |
• Compact and versatile design
• Soft seal for bubble tight closure • Prevent Reverse flow in pressure systems • Suitable for Gases and Liquids • Low pressure differential to effect seal • Stainless steel spring for long life • Can be used on vent valve to prevent ingress into system • End connections are optional (Screwed/Flanged/Compression ends) |
|---|---|
| Size |
Upto 1”
|
| Materials |
SS316/316L, A105/350LF2, Monel, Inconel, Duplex, Super Duplex/ Hastelloy & BMO
|
| Seat |
HNBR/FKM/Vitron
|
| Working Temperature |
-29°c to +180°c (-20.2°F to 356°F)
|
| Working Pressure |
6000 PSI /10000 PSI
|
| Testing |
100% Hydrotesting performed as per std BSEN 12266-1/API598
|
| Spring |
SS316/SS304/SS302
|
| Optional End Connections |
• Screwed end (NPT/BSPP/BSPT)
• Flanged end (ASME 150# to 2500#) • Compression end (1/4”, ½”, ¾”, 1” – imperial range, 6mm, 10mm, 12mm, 16mm, 19mm, 25mm – Metric range) |
| Certification |
EN10204 – 3.1 Certification as standard / 3.2 if required
|
