CAVITY SEALED BALL VALVE
Category: Cavity Sealed Ball Valves
| Features |
• Special cavity seat design eliminates the cavity between ball and body

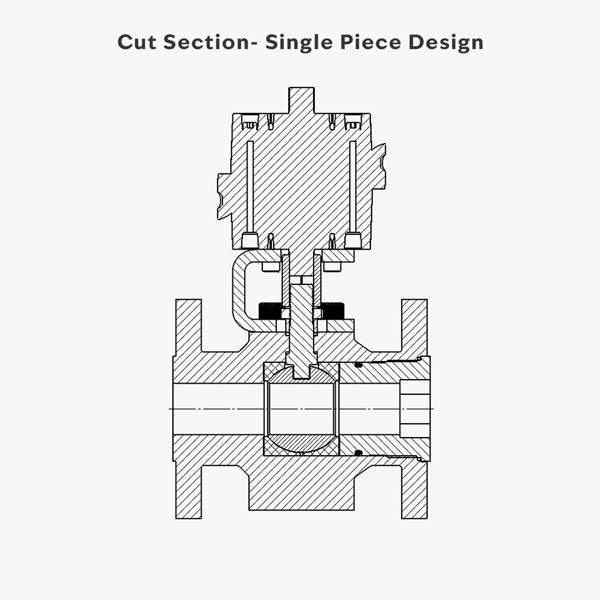

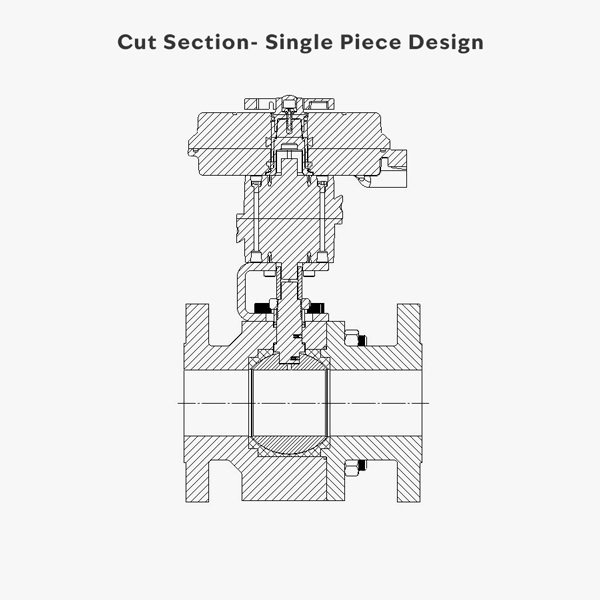

• Cavity sealed seat type prevent media build up and potential clogging inside the cavity • Bi-directional floating ball design • Flexible 3 piece / 2 piece / single piece design Helps for easy maintenance • Low operating torque • Excellent flow • Anti blow out internal loaded stem • Available with various connections • Full bore / reduced bore option available • Supply to NAVE MR 0175 / ISO15156,if required • Npt threads as per Std b1.20.1 • Flanged end as per ASME b16.5 Std • Pressure rating as per ASME b16.34 Std • Manual lever operator/ Actuator operator will be provided as per customer requirement |
|---|---|
| Materials |
CARBON STEEL / STAINLESS STEEL / DUPLEX / SUPER DUPLEX/
INCONEL / MONEL / HASTELLOY Etc |
| Seat |
PTFE / DELRIN
Note: ( Delrin seat – Not suitable for oxygen services ) |
| Working Temperature |
-29°C to +150°C ( -20.2 °F to +302°F)
|
| Working Pressure |
1000 PSI ( 69 Bar) Max
|
| Testing |
100% Hydro testing using water with 1.5 times of maximum
working pressure. |
| Optional End Connections |
1/4 “ to 2” - NPT / BSPP (Male or Female)
1/2 “ to 3” – FLANGED / WELDED |
| Certification |
EN10204 – 3.1 Certification
EN10204 – 3.2 Certification will be provided if required |
