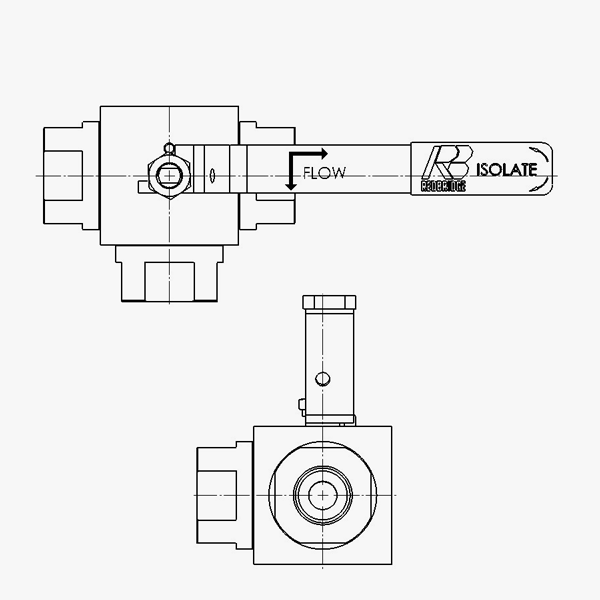

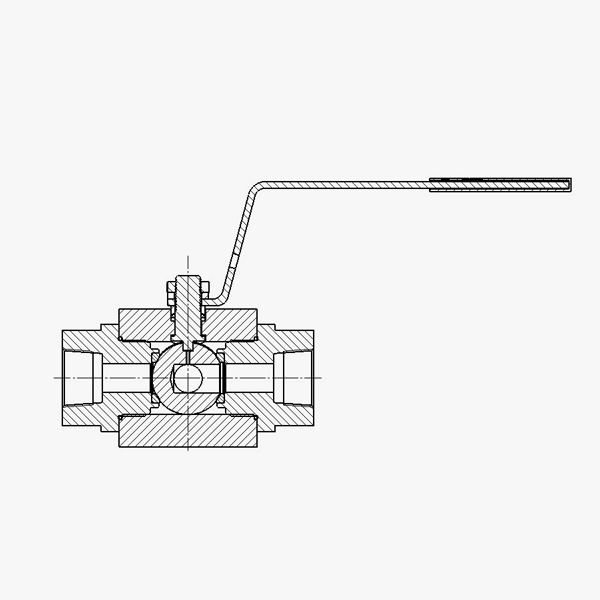

3 WAY BALL VALVE
Category: 3 Way Ball Valves
| Features |
• Floating type soft seated Ball Valve
• Optional flow pattern (L- Port / T- Port) • Flexible 2 piece / 3 piece design helps for easy maintenance • Low operating torque • Excellent flow • Bubble tight shut off • Anti blow out internal loaded stem • Available with various connections (Flanged/ Screwed / Weld Ends) • Full bore / Reduced bore variants are available • Supply to NACE MR 0175 / ISO15156, if required • NPT thread as per ASME b1.20.1 Standard • Locking kit (optional) |
|---|---|
| Optional Connections |
SCREWED ENDS (NPT/ BSPP )
FLANGED ENDS ( ASME B16.5 & DIN 3357 STANDARDS) WELD ENDS (BUTT WELD / SOCKET WELD) |
| NPS Size |
1/4 “ to 2”
|
| Materials |
• BODY - SS316L / A105 / LF2 / MONEL/ INCONEL/ DUPLEX etc.
• SEAT - PTFE / DELRIN / PVDF/ PEEK • PACKING – PTFE / RPTFE / GRAPHITE |
| Working Temperature |
-29°C to +200°C ( -20.2°F to +392°F)
|
| Working Pressure |
6000 psi (414 Bar) Max
|
| Testing |
100% Hydro testing performed using water
(Shell test – 1.5 T of CWP & Seat test – 1.1 Times of CWP) |
| Certification |
EN 10204 – 3.1 Certification will be provided
– 3.2 Certification will be provided, if required |
